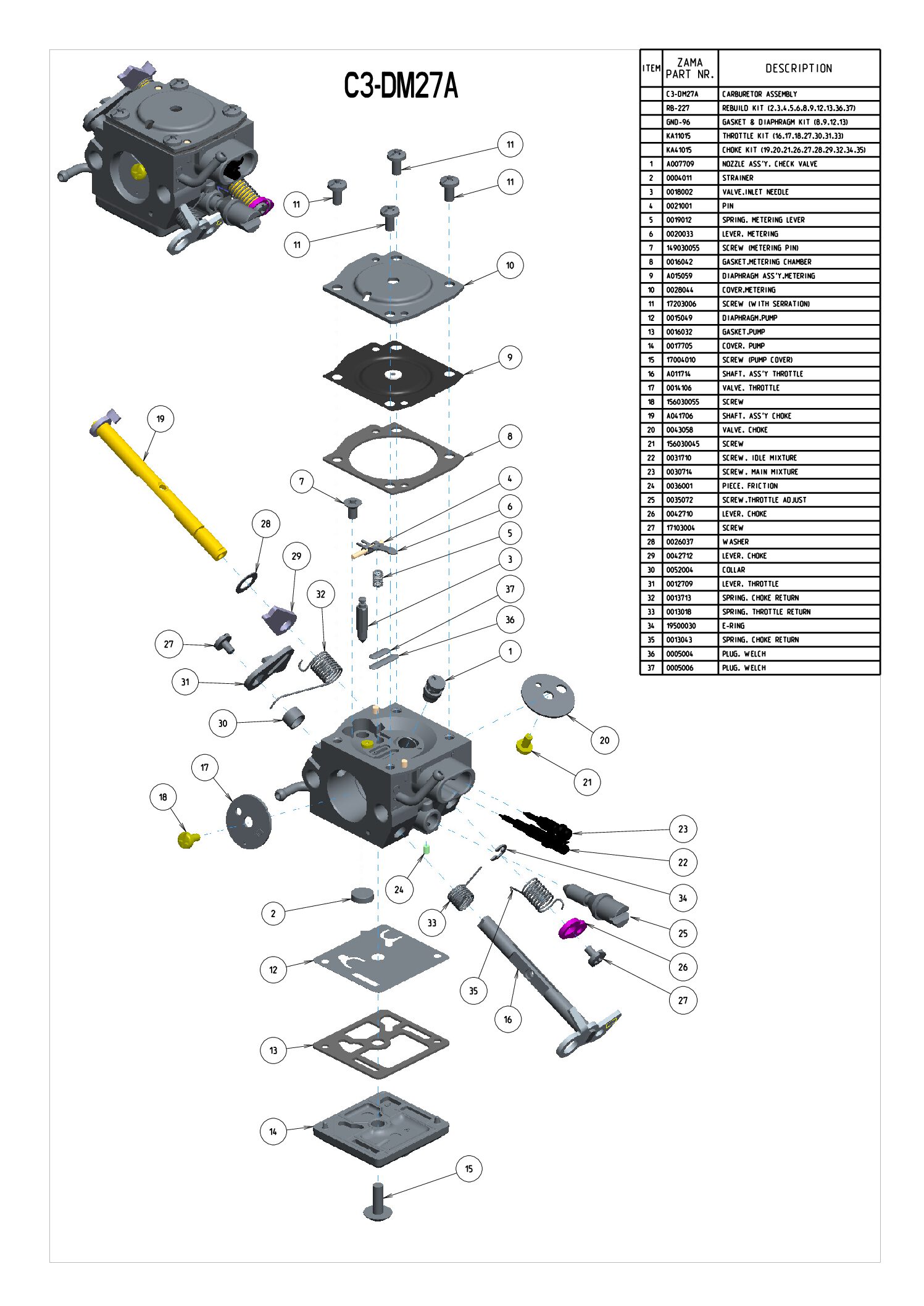

C3-DM27A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| Venturi | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
 |
Throttle Kit | ||
| u | Choke Kit | ||
| 1 | Strainer | |
|
| 1 | Nozzle Ass'y, Check Valve | ||
| 3 | Valve, Inlet Needle | |
|
| 4 | Plug, Welch | |
|
| 4 | Plug, Welch | |
|
| 9 | Spring, Throttle Return | ||
| 10 | Valve, Throttle | ||
| 11 | Diaphragm Ass'y, Metering | |
|
| 11 | Spring, Throttle Return | ||
| 12 | Diaphragm, Pump | |
|
| 13 | Gasket, Metering Chamber | |
|
| 14 | Gasket, Pump | |
|
| 14 | Cover, Pump | ||
| 16 | Shaft Ass'y, Throttle | |
|
| 19 | Shaft Ass'y, Choke | u | |
| 19 | Lever, Metering | |
|
| 21 | Spring, Metering Lever | |
|
| 21 | Cover, Metering Chamber | ||
| 22 | Screw, Idle Mixture | ||
| 23 | Screw, Main Mixture | ||
| 23 | Pin | |
|
| 26 | Lever, Choke | u | |
| 26 | Screw, Throttle Adjust | ||
| 28 | Collar | ||
| 28 | Lever, Choke | u | |
| 30 | Piece, Friction | |
|
| 31 | Spring, Friction | ||
| 32 | Lever, Throttle | |
|
| 33 | Valve, Choke | ||
| 35 | Screw (Pin) | ||
| 36 | Spring, Choke Return | u | |
| 41 | Screw (Throttle Valve) | ||
| 41 | Screw (Throttle Valve) | ||
| 44 | Screw (Metering Cover) | ||
| 45 | Screw (Pump Cover) | ||
| 46 | Screw (Throttle Lever) | ||
| 48 | E-Ring (Throttle Shaft) | ||
| 55 | Washer (Limiter) |
