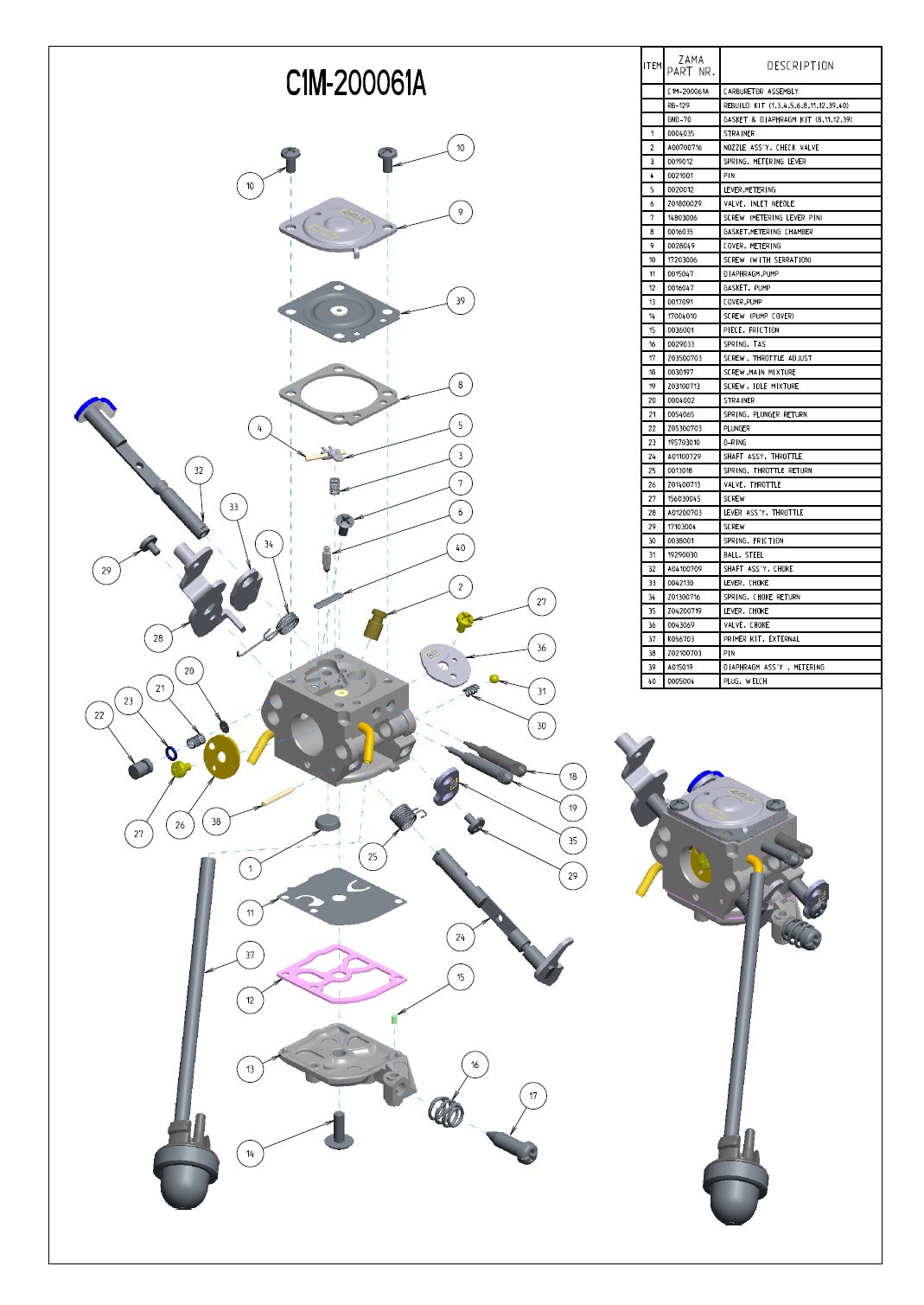

C1M-200061A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| Venturi | |||
| CARBURETOR MARKING | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 2 | Strainer | |
|
| 2 | Nozzle Ass'y, Check Valve | ||
| 2 | Strainer | ||
| 4 | Plug, Welch | |
|
| 9 | Spring, Throttle Return | ||
| 12 | Diaphragm, Pump | |
|
| 14 | Diaphragm Ass'y, Metering | |
|
| 14 | Screw, Throttle Adjust |  |
|
| 15 | Cover, Pump | |
|
| 17 | Gasket, Metering Chamber | |
|
| 18 | Gasket, Pump | |
|
| 18 | Screw, Idle Mixture | ||
| 20 | Valve, Inlet Needle | |
|
| 21 | Cover, Metering Chamber | ||
| 21 | Spring, Metering Lever | |
|
| 22 | Plunger | ||
| 22 | Lever, Metering | |
|
| 23 | Pin | |
|
| 24 | Shaft Ass'y, Throttle | ||
| 25 | Valve, Throttle | ||
| 26 | Spring, Adjust Screw | |
|
| 27 | Screw, Main Mixture | ||
| 28 | Lever, Throttle | ||
| 30 | Piece, Friction | |
|
| 31 | Spring, Friction | ||
| 32 | Shaft Ass'y, Choke | ||
| 34 | Spring, Choke | ||
| 35 | Lever, Choke | ||
| 35 | Valve, Choke | ||
| 37 | Spring (Plunger Return) | ||
| 37 | Primer Kit, External | ||
| 38 | Pin | ||
| 40 | Screw (Pin) | ||
| 41 | Screw (Throttle Valve) | ||
| 44 | Screw (Metering Cover) | ||
| 45 | Screw (Pump Cover) | ||
| 46 | Screw (Throttle Lever) | ||
| 47 | Ball, Steel | ||
| 50 | O-Ring (Plunger) | ||
| 55 | Lever, Choke Control |
