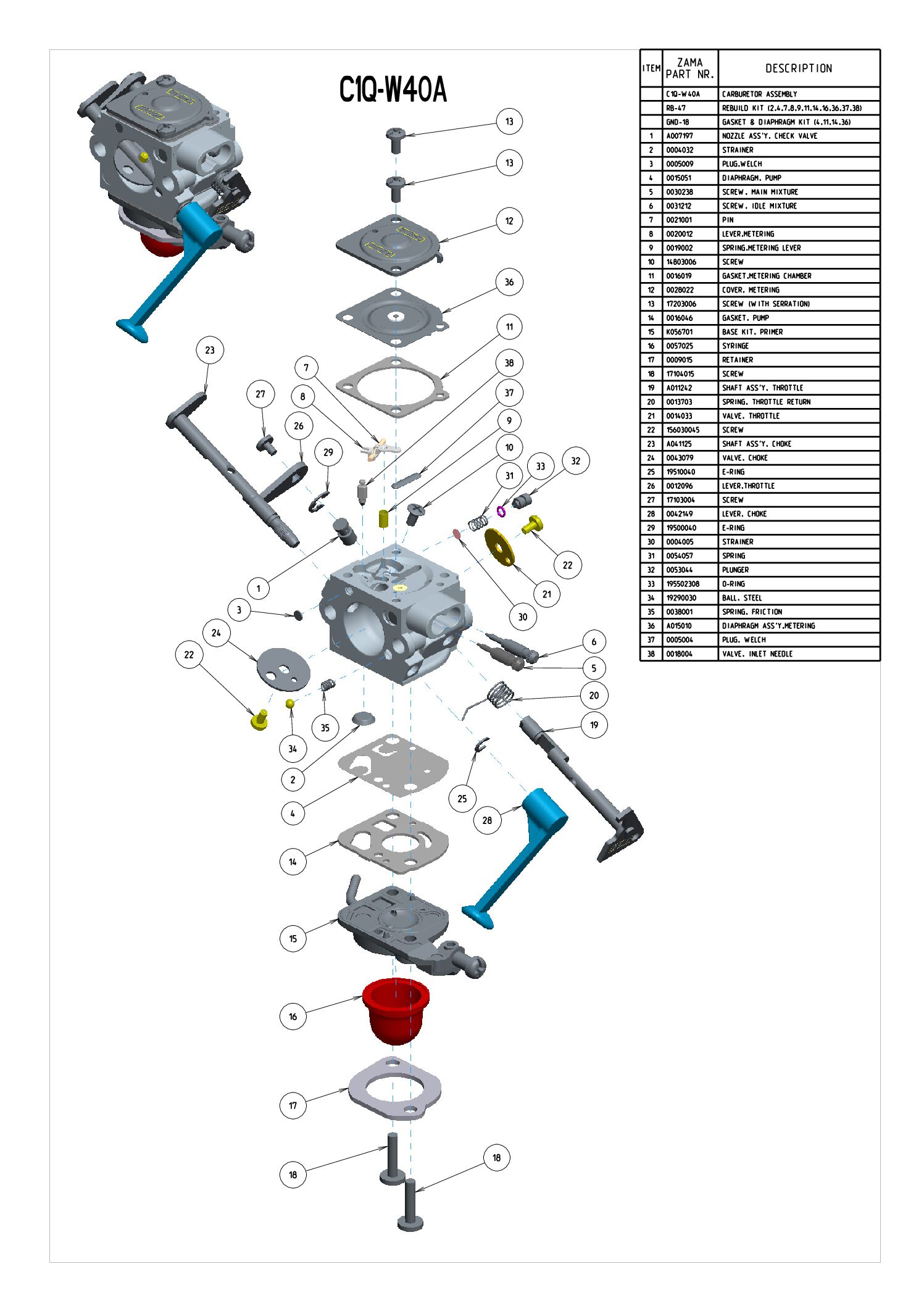

C1Q-W40A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| Venturi | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 1 | Strainer | |
|
| 2 | Strainer | ||
| 4 | Plug, Welch | |
|
| 5 | Plug, Welch | |
|
| 9 | Nozzle Ass'y, Check Valve | ||
| 10 | Shaft Ass'y, Throttle | ||
| 11 | Lever, Throttle | ||
| 13 | Valve, Throttle | ||
| 13 | Diaphragm, Pump | |
|
| 14 | Gasket, Pump | |
|
| 14 | Diaphragm Ass'y, Metering | |
|
| 15 | Base Ass'y, Primer | ||
| 17 | Retainer, Syringe | ||
| 17 | Gasket, Metering Chamber | |
|
| 18 | Screw, Retainer | ||
| 20 | Screw, Idle Mixture | ||
| 20 | Valve, Inlet Needle | |
|
| 21 | Spring, Metering Lever | |
|
| 21 | Spring, Throttle Return | ||
| 22 | Lever, Metering | |
|
| 22 | Plunger | ||
| 23 | Pin | |
|
| 24 | Cover, Metering Chamber | ||
| 24 | Shaft Ass'y, Choke | ||
| 24 | Valve, Choke | ||
| 27 | Screw, Main Mixture | ||
| 31 | Spring, Friction | ||
| 31 | E-Ring | ||
| 37 | Spring (Plunger Return) | ||
| 39 | Syringe | |
|
| 40 | Screw (Pin) | ||
| 41 | Screw (Throttle Valve) | ||
| 44 | Screw (Metering Cover) | ||
| 46 | Screw (Throttle Lever) | ||
| 47 | Ball, Steel | ||
| 48 | E-Ring (Throttle Shaft) | ||
| 50 | O-Ring (Plunger) | ||
| 59 | Lever, Choke |
