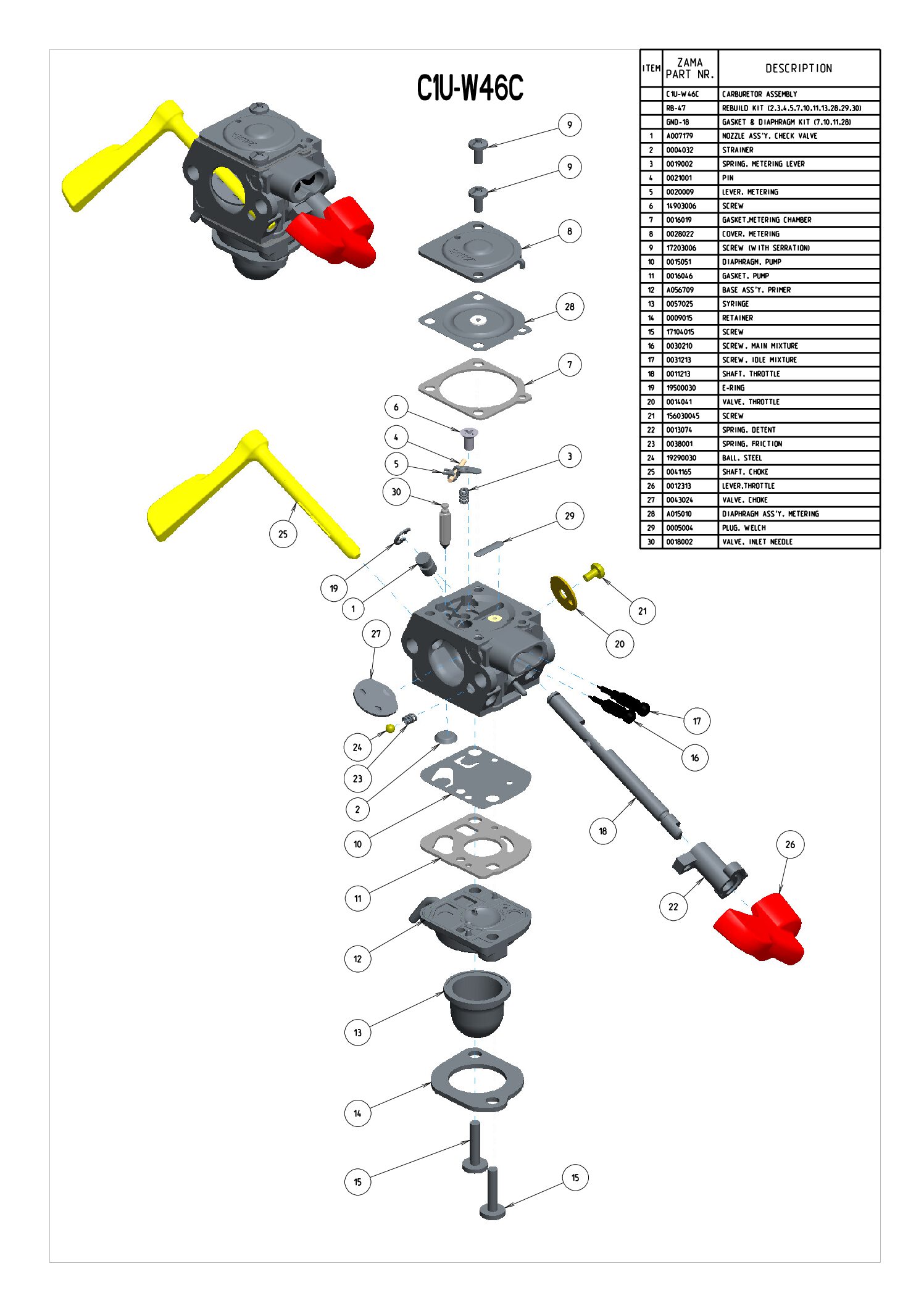

C1U-W46C
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 8 mm | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 1 | Nozzle Ass'y, Check Valve | ||
| 2 | Strainer | |
|
| 3 | Spring, Metering Lever | |
|
| 4 | Pin | |
|
| 5 | Lever, Metering | |
|
| 6 | Screw (Pin) | ||
| 7 | Gasket, Metering Chamber | |
|
| 8 | Cover, Metering Chamber | ||
| 9 | Screw (Metering Cover) | ||
| 10 | Diaphragm, Pump | |
|
| 11 | Gasket, Pump | |
|
| 12 | Base Ass'y, Primer | ||
| 13 | Syringe | |
|
| 14 | Retainer, Syringe | ||
| 15 | Screw, Retainer | ||
| 16 | Screw, Main Mixture | ||
| 17 | Screw, Idle Mixture | ||
| 18 | Shaft Ass'y, Throttle | ||
| 19 | E-Ring (Throttle Shaft) | ||
| 20 | Valve, Throttle | ||
| 21 | Screw (Throttle Valve) | ||
| 22 | Spring, Throttle Return | ||
| 23 | Spring, Friction | ||
| 24 | Ball, Steel | ||
| 25 | Shaft Ass'y, Choke | ||
| 26 | Lever, Throttle | ||
| 27 | Valve, Choke | ||
| 28 | Diaphragm Ass'y, Metering | |
|
| 29 | Plug, Welch | |
|
| 30 | Valve, Inlet Needle | |
