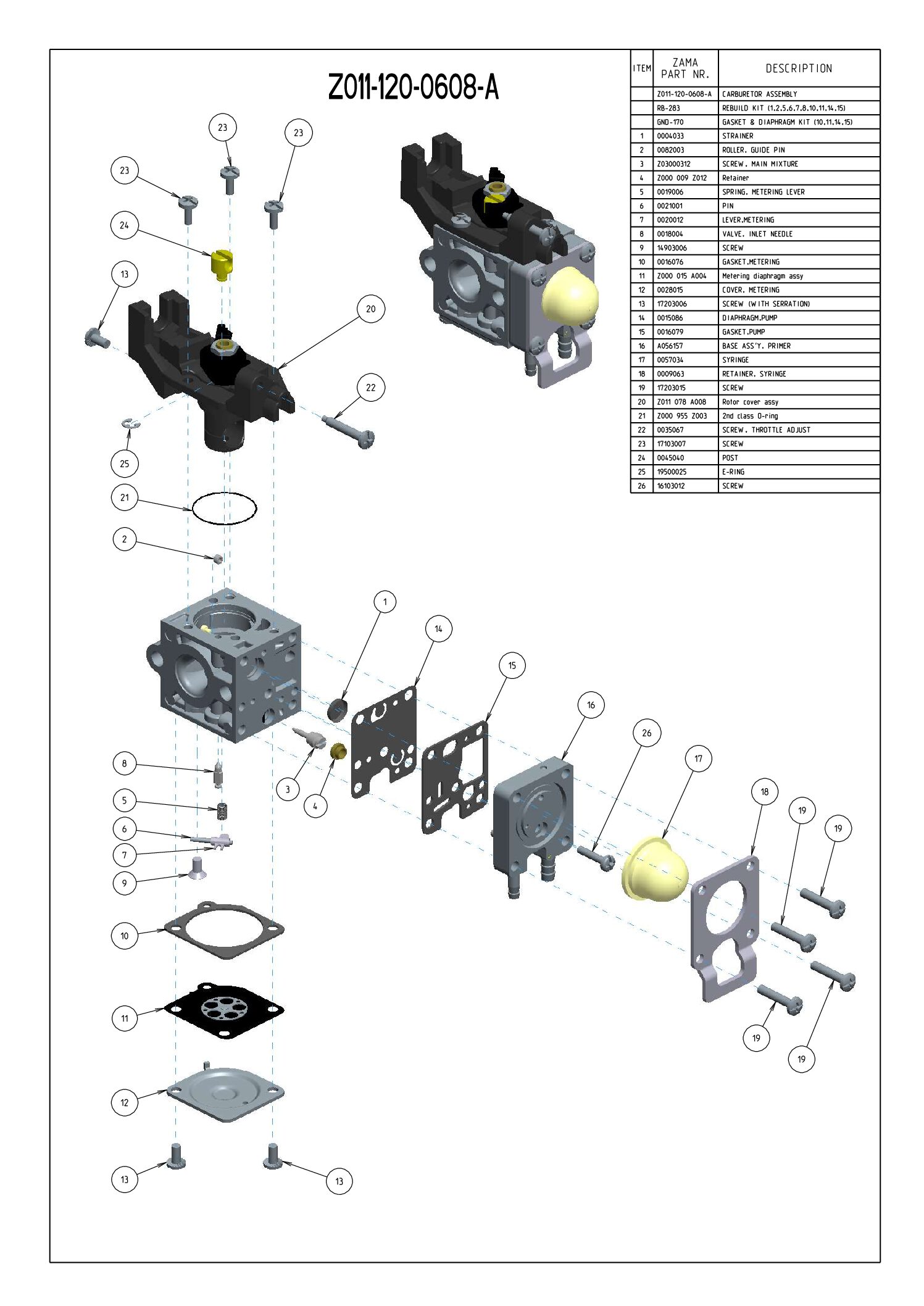

RB-Z011-120-0608-A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| CARBURETOR MARKING | |||
| Venturi | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 1 | Strainer | |
|
| 2 | Roller, Guide | |
|
| 2 | Retainer | ||
| 3 | Screw, Main Mixture | ||
| 3 | Retainer, Syringe | ||
| 5 | Diaphragm, Pump | |
|
| 7 | Screw (Pin) | ||
| 7 | Gasket, Pump | |
|
| 8 | Gasket, Metering Chamber | |
|
| 11 | Diaphragm Ass'y, Metering | |
|
| 14 | Screw, Throttle Adjust | ||
| 15 | Post | ||
| 16 | Base Ass'y, Primer | ||
| 17 | Syringe | ||
| 20 | Valve, Inlet Needle | |
|
| 21 | Spring, Metering Lever | |
|
| 21 | Rotor cover assy | ||
| 22 | O-Ring | ||
| 22 | Lever, Metering | |
|
| 23 | Pin | |
|
| 24 | Cover, Metering Chamber | ||
| 24 | Screw (Base Ass'y, Primer) | ||
| 44 | Screw (Metering Cover) | ||
| 44 | Screw (Metering Cover) | ||
| 51 | Screw, Retainer | ||
| 52 | E-Ring (Choke Shaft) |
