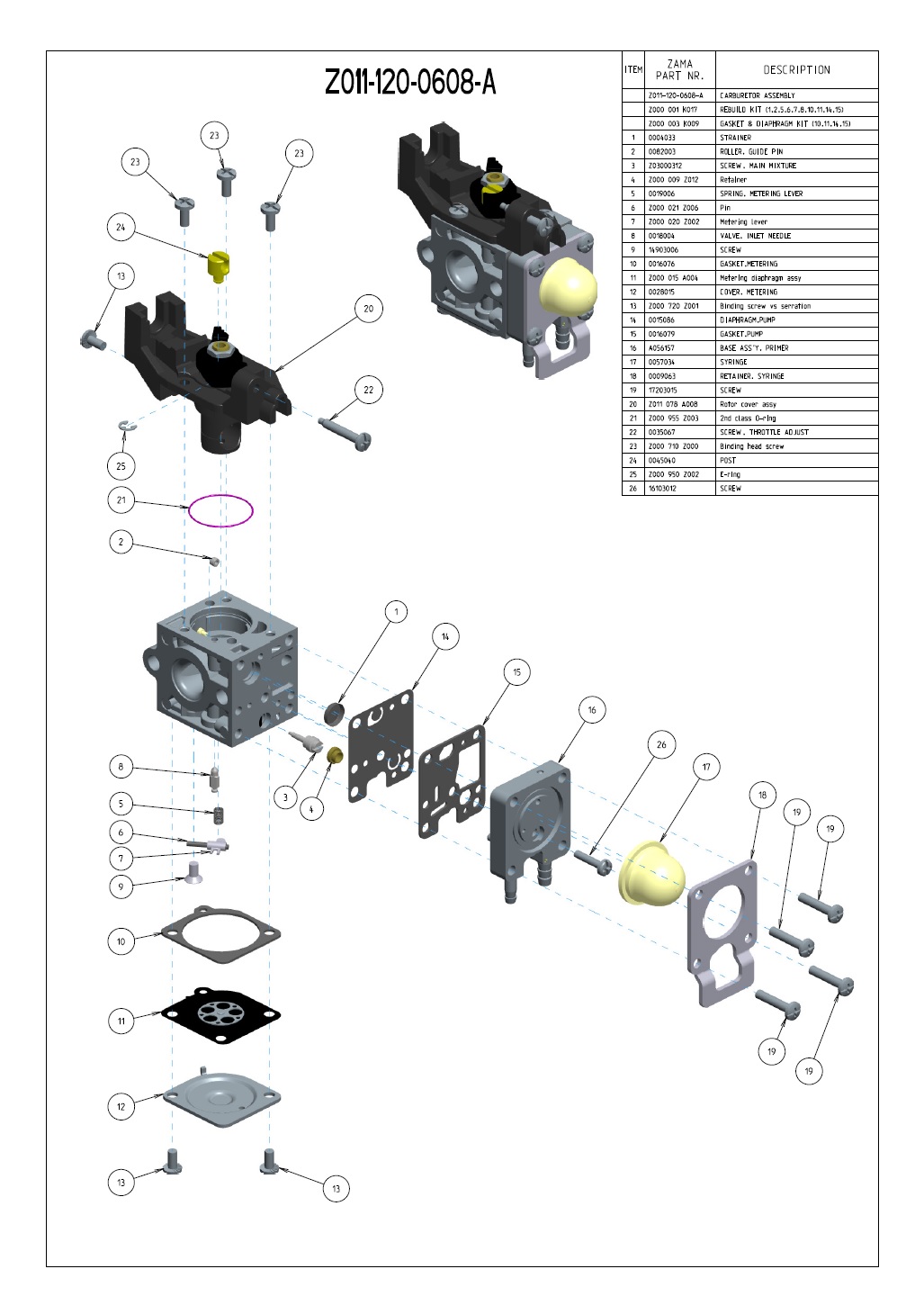

Z011-120-0608-A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 9 mm | |||
 |
REBUILD KIT | ||
 |
GASKET & DIAPHRAGM KIT | |
|
| 1 | Strainer | |
|
| 2 | Roller, Guide | |
|
| 3 | Screw, Main Mixture | ||
| 4 | Retainer | ||
| 5 | Spring, Metering Lever | |
|
| 6 | Pin | |
|
| 7 | Metering lever | |
|
| 8 | Valve, Inlet Needle | |
|
| 9 | Screw (Pin) | ||
| 10 | Gasket, Metering Chamber | |
|
| 11 | Metering diaphragm assy | |
|
| 12 | Cover, Metering Chamber | ||
| 13 | Binding screw vs serration | ||
| 14 | Diaphragm, Pump | |
|
| 15 | Gasket, Pump | |
|
| 16 | Base Ass'y, Primer | ||
| 17 | Syringe | ||
| 18 | Retainer, Syringe | ||
| 19 | Screw, Retainer | ||
| 20 | Rotor cover assy | ||
| 21 | 2nd class O-ring | ||
| 22 | Screw, Throttle Adjust | ||
| 23 | Binding head screw | ||
| 24 | Post | ||
| 25 | E-ring | ||
| 26 | Screw (Base Ass'y, Primer) |
