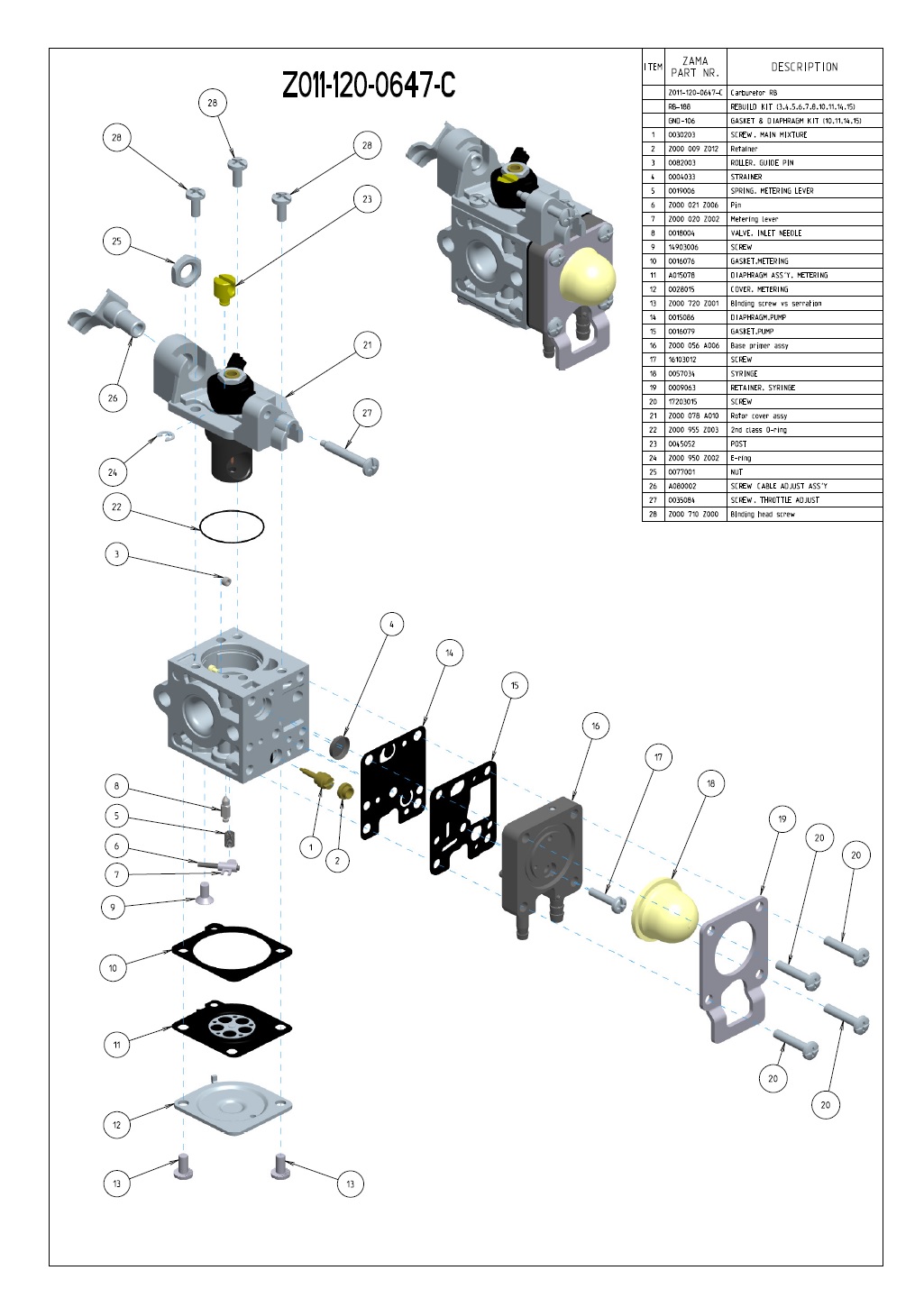

9 mm |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| 1 |
Adjust Screw, Main Mixture |
|
|
| 2 |
Retainer |
|
|
| 3 |
Roller, Guide |
|
|
| 4 |
Strainer |
|
|
| 5 |
Spring, Metering Lever |
|
|
| 6 |
Pin |
|
|
| 7 |
Metering lever |
|
|
| 8 |
Valve, Inlet Needle |
|
|
| 9 |
Screw (Pin) |
|
|
| 10 |
Gasket, Metering Chamber |
|
|
| 11 |
Diaphragm Ass'y, Metering |
|
|
| 12 |
Cover, Metering Chamber |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
Diaphragm, Pump |
|
|
| 15 |
Gasket, Pump |
|
|
| 16 |
Base primer assy |
|
|
| 17 |
Screw (Base Ass'y, Primer) |
|
|
| 18 |
Syringe |
|
|
| 19 |
Retainer, Syringe |
|
|
| 20 |
Screw, Retainer |
|
|
| 21 |
Rotor cover assy |
|
|
| 22 |
2nd class O-ring |
|
|
| 23 |
Post |
|
|
| 24 |
E-ring |
|
|
| 25 |
Nut, Cable |
|
|
| 26 |
Screw, Wire Adjust |
|
|
| 27 |
Screw, Throttle Adjust |
|
|
| 28 |
Binding head screw |
|
|
