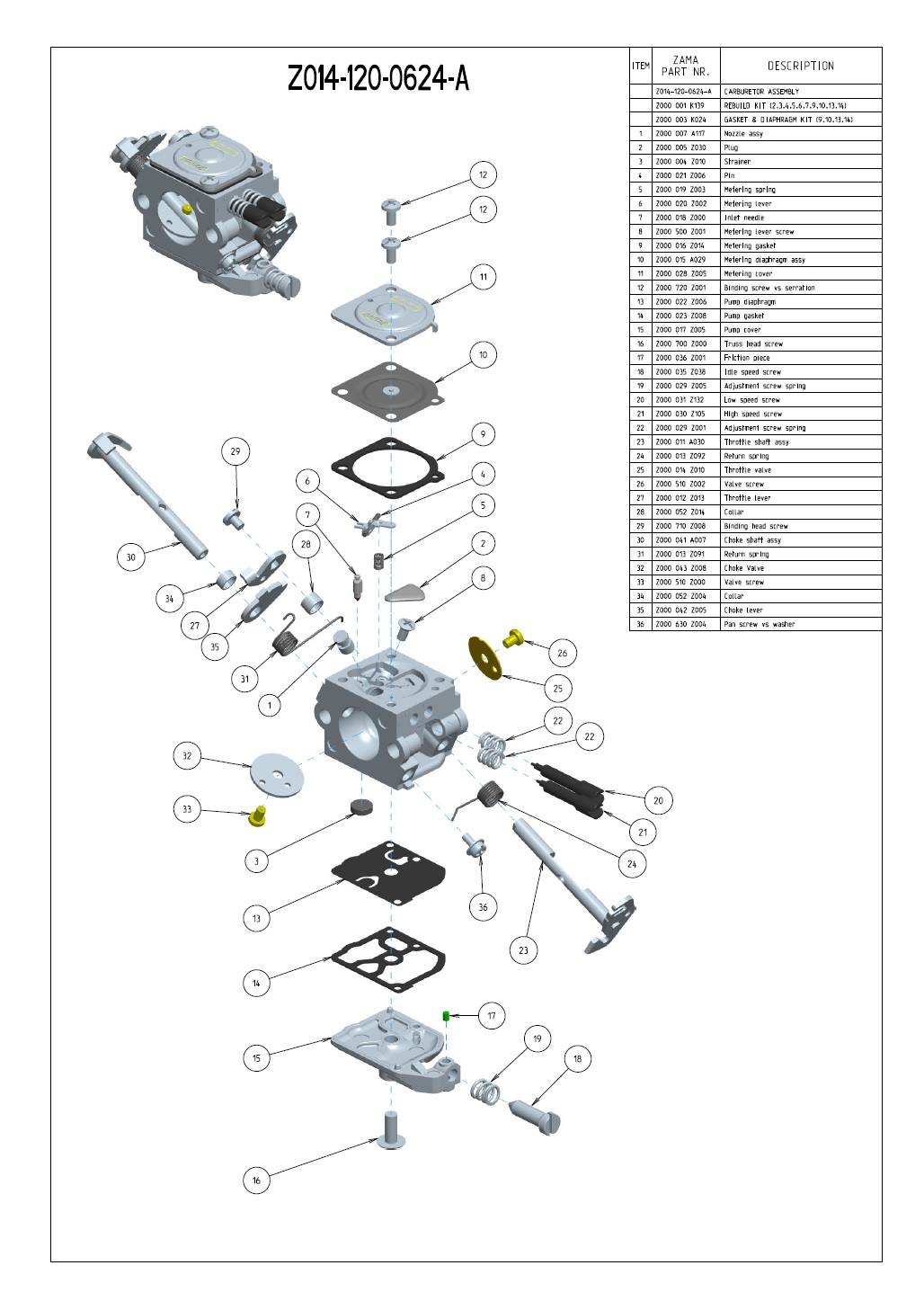

Z014-120-0624-A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 13.5 mm | |||
 |
REBUILD KIT | ||
 |
GASKET & DIAPHRAGM KIT | |
|
| 1 | Nozzle assy | ||
| 2 | Plug | |
|
| 3 | Strainer | |
|
| 4 | Pin | |
|
| 5 | Metering spring | |
|
| 6 | Metering lever | |
|
| 7 | Inlet needle | |
|
| 8 | Metering lever screw | ||
| 9 | Metering gasket | |
|
| 10 | Metering diaphragm assy | |
|
| 11 | Metering cover | ||
| 12 | Binding screw vs serration | ||
| 13 | Pump diaphragm | |
|
| 14 | Pump gasket | |
|
| 15 | Pump cover=Z0017029A | ||
| 16 | Truss head screw | ||
| 17 | Friction piece | ||
| 18 | Idle speed screw | ||
| 19 | Adjustment screw spring | ||
| 20 | Low speed screw | ||
| 21 | High speed screw | ||
| 22 | Adjustment screw spring | ||
| 23 | Throttle shaft assy | ||
| 24 | Return spring | ||
| 25 | Throttle valve | ||
| 26 | Valve screw | ||
| 27 | Throttle lever | ||
| 28 | Collar | ||
| 29 | Binding head screw | ||
| 30 | Choke shaft assy | ||
| 31 | Return spring | ||
| 32 | Choke Valve | ||
| 33 | Valve screw | ||
| 34 | Collar | ||
| 35 | Choke lever | ||
| 36 | Pan screw vs washer |
