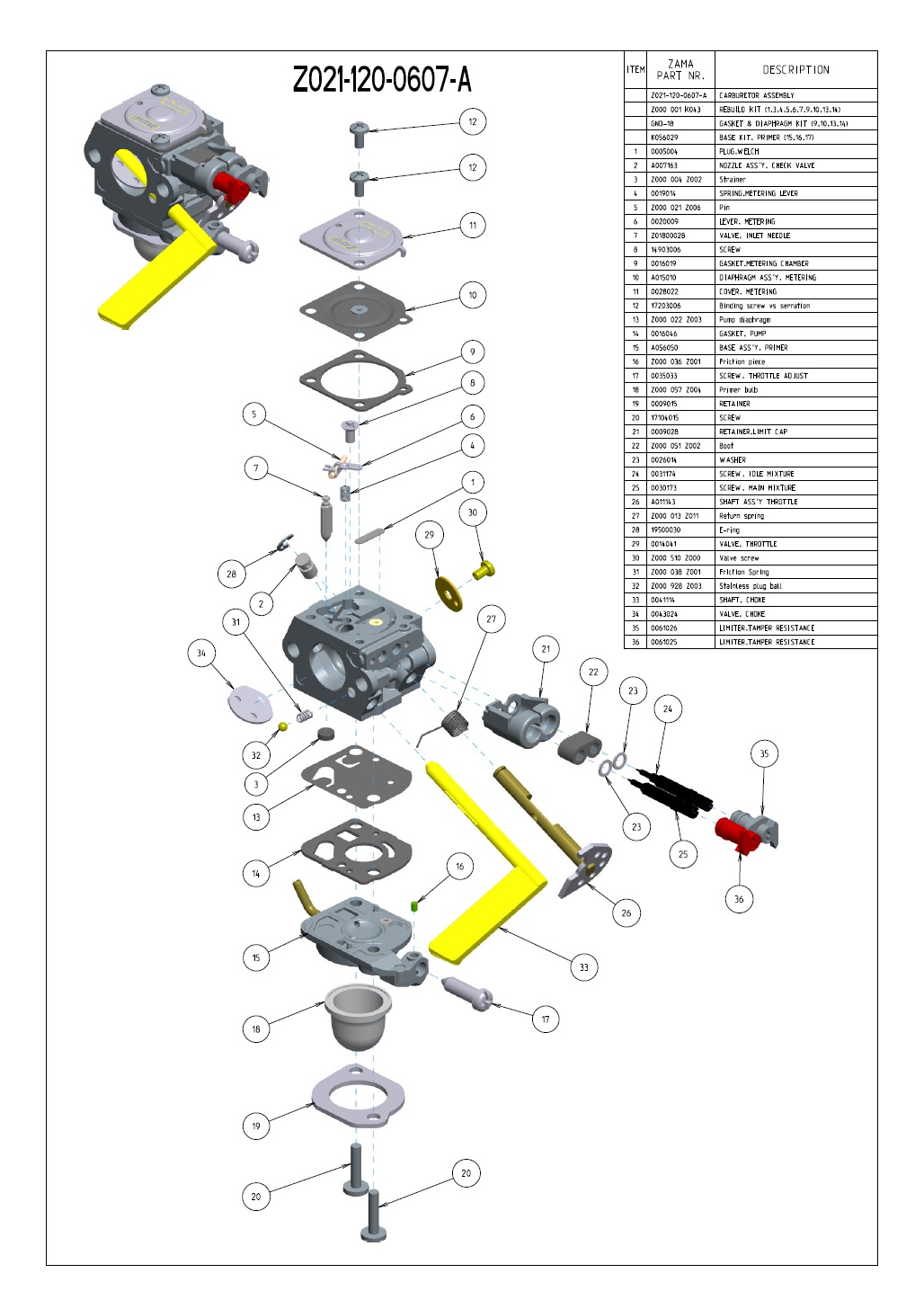

Z021-120-0607-A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 9 mm | |||
 |
REBUILD KIT | ||
 |
Gasket & Diaphragm Kit | |
|
 |
Base Kit, Primer | ||
| 1 | Plug, Welch | |
|
| 2 | Nozzle Ass'y, Check Valve | ||
| 3 | Strainer | |
|
| 4 | Spring, Metering Lever | |
|
| 5 | Pin | |
|
| 6 | Lever, Metering | |
|
| 7 | VALVE, INLET NEEDLE | |
|
| 8 | Screw (Pin) | ||
| 9 | Gasket, Metering Chamber | |
|
| 10 | Diaphragm Ass'y, Metering | |
|
| 11 | Cover, Metering Chamber | ||
| 12 | Screw (Metering Cover) | ||
| 13 | Pump diaphragm | |
|
| 14 | Gasket, Pump | |
|
| 15 | Base Ass'y, Primer | |
|
| 16 | Friction piece | |
|
| 17 | Screw, Throttle Adjust | |
|
| 18 | Primer bulb | ||
| 19 | Retainer, Syringe | ||
| 20 | Screw, Retainer | ||
| 21 | Retainer (Limiter) | ||
| 22 | Boot | ||
| 23 | Washer (Limiter) | ||
| 24 | Screw, Idle Mixture | ||
| 25 | Screw, Main Mixture | ||
| 26 | Shaft Ass'y, Throttle | ||
| 27 | Return spring | ||
| 28 | E-Ring (Throttle Shaft) | ||
| 29 | Valve, Throttle | ||
| 30 | Valve screw | ||
| 31 | Friction Spring | ||
| 32 | Stainless plug ball | ||
| 33 | Shaft Ass'y, Choke | ||
| 34 | Valve, Choke | ||
| 35 | Limiter, Mixture (L) | ||
| 36 | Limiter, Mixture (H) |
