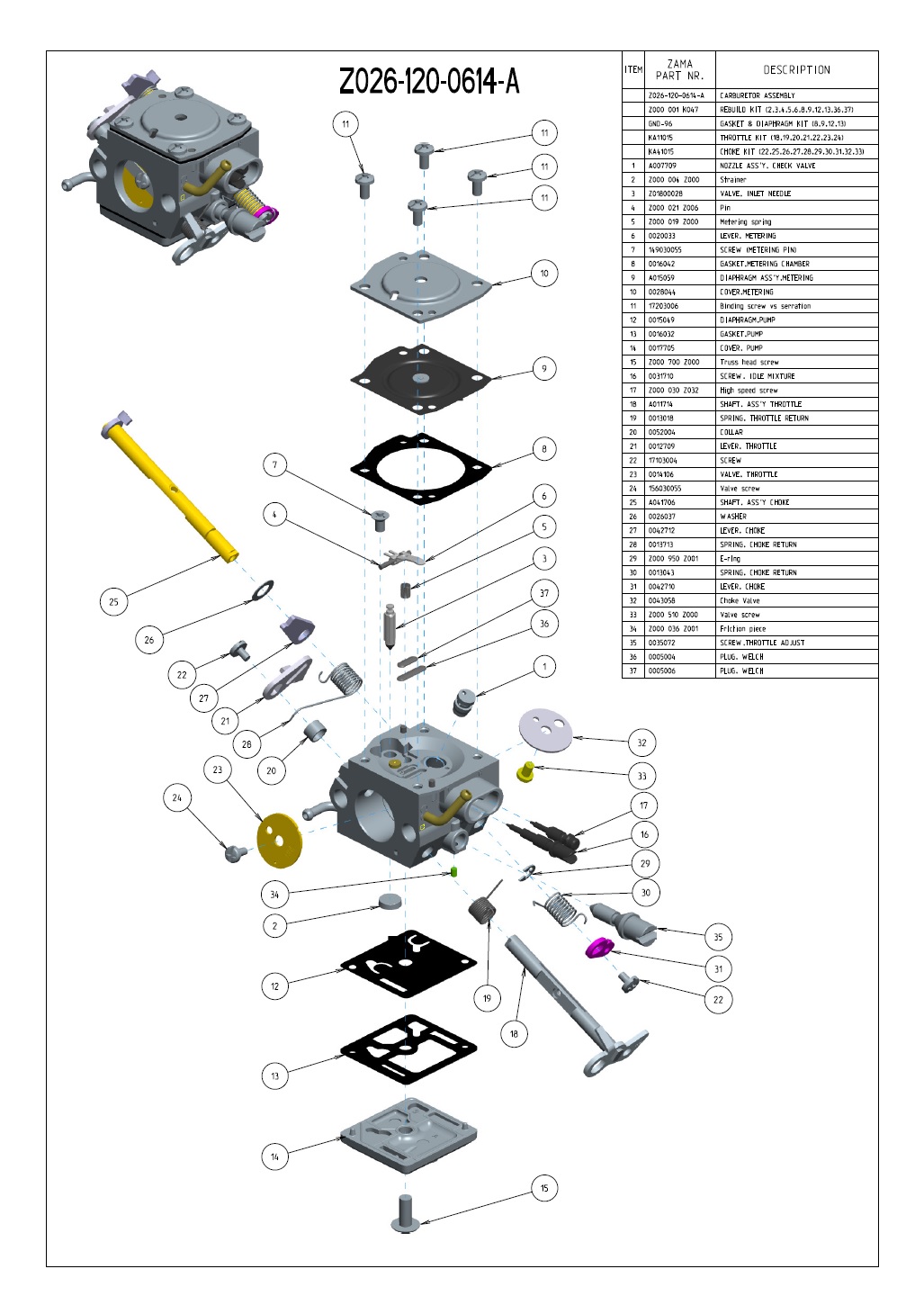

Z026-120-0614-A
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 16 mm | |||
 |
REBUILD KIT | ||
 |
Gasket & Diaphragm Kit | |
|
 |
Throttle Kit | ||
| d | Choke Kit | ||
| 1 | Nozzle Ass'y, Check Valve | ||
| 2 | Strainer | |
|
| 3 | VALVE, INLET NEEDLE | |
|
| 4 | Pin | |
|
| 5 | Metering spring | |
|
| 6 | Lever, Metering | |
|
| 7 | Screw (Pin) | ||
| 8 | Gasket, Metering Chamber | |
|
| 9 | Diaphragm Ass'y, Metering | |
|
| 10 | Cover, Metering Chamber | ||
| 11 | Screw (Metering Cover) | ||
| 12 | Diaphragm, Pump | |
|
| 13 | Gasket, Pump | |
|
| 14 | Cover, Pump | ||
| 15 | Truss head screw | ||
| 16 | Screw, Idle Mixture | ||
| 17 | High speed screw | ||
| 18 | Shaft Ass'y, Throttle | |
|
| 19 | Spring, Throttle Return | |
|
| 20 | Collar | |
|
| 21 | Lever, Throttle | |
|
| 22 | Screw (Throttle Lever) | D |
|
| 23 | Valve, Throttle | |
|
| 24 | Screw (Throttle Valve) | |
|
| 25 | Shaft Ass'y, Choke | d | |
| 26 | Washer (Limiter) | d | |
| 27 | Lever, Choke | d | |
| 28 | Spring, Choke Return | d | |
| 29 | E-ring | d | |
| 30 | Spring, Throttle Return | d | |
| 31 | Lever, Choke | d | |
| 32 | Valve, Choke | d | |
| 33 | Valve screw | d | |
| 34 | Friction piece | ||
| 35 | Screw, Throttle Adjust | ||
| 36 | Plug, Welch | |
|
| 37 | Plug, Welch | |
