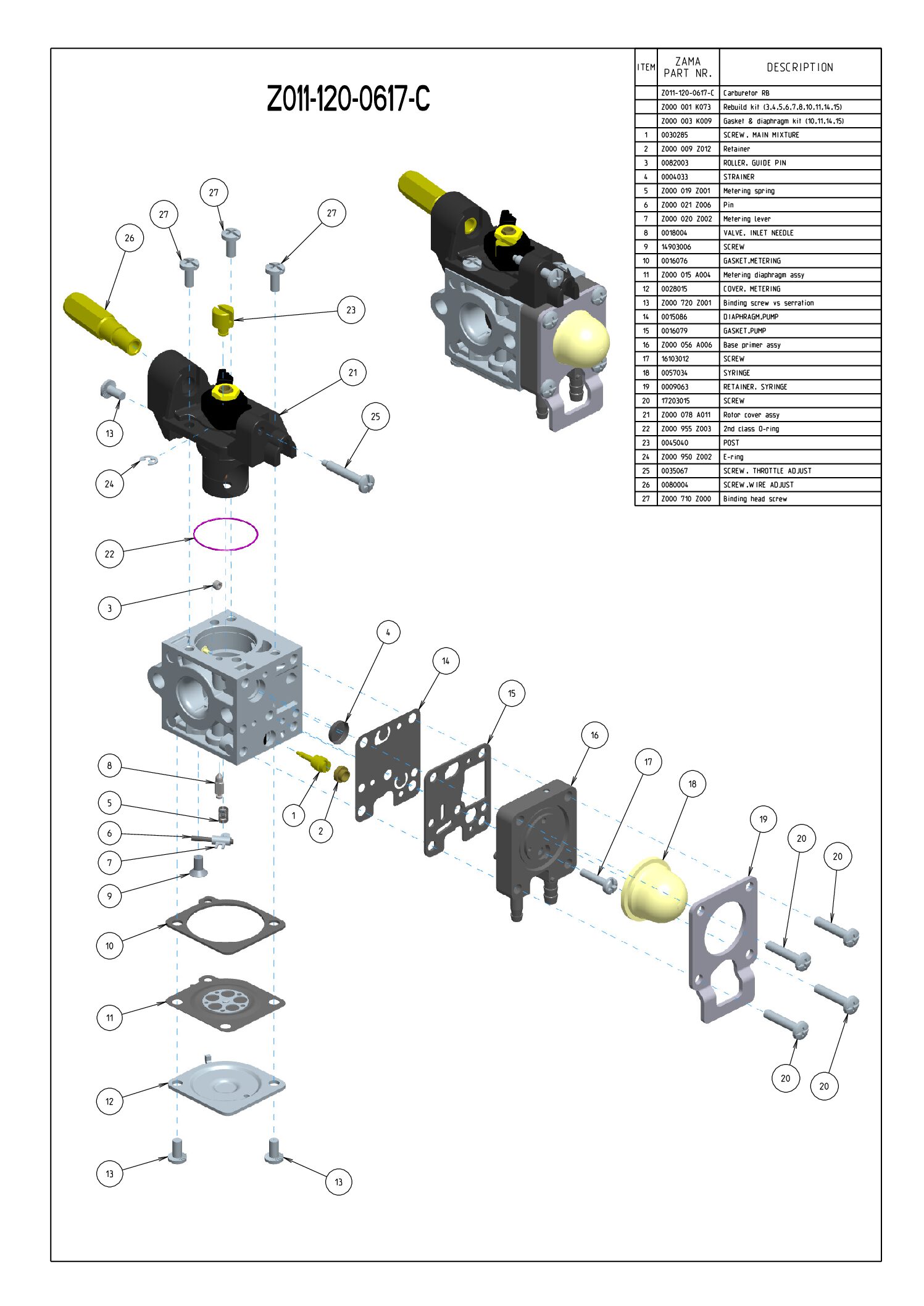

Z011-120-0617-C
| Ref | Part Name | Model Part | |
|---|---|---|---|
| VENTURI | |||
 |
Rebuild kit | ||
 |
GASKET & DIAPHRAGM KIT | |
|
| 1 | Screw, Main Mixture | ||
| 1 | Strainer | |
|
| 2 | Roller, Guide | |
|
| 3 | Retainer, Syringe | ||
| 4 | Retainer | ||
| 5 | Diaphragm, Pump | |
|
| 5 | Metering spring | |
|
| 6 | Pin | |
|
| 7 | Gasket, Pump | |
|
| 7 | Screw (Pin) | ||
| 7 | Metering lever | |
|
| 8 | Gasket, Metering Chamber | |
|
| 11 | Metering diaphragm assy | |
|
| 13 | Binding screw vs serration | ||
| 14 | Screw, Throttle Adjust | ||
| 15 | Post | ||
| 16 | Base primer assy | ||
| 17 | Syringe | ||
| 20 | Screw, Wire Adjust | ||
| 20 | Valve, Inlet Needle | |
|
| 21 | Rotor cover assy | ||
| 22 | 2nd class O-ring | ||
| 24 | E-ring | ||
| 24 | Cover, Metering Chamber | ||
| 24 | Screw (Base Ass'y, Primer) | ||
| 27 | Binding head screw | ||
| 51 | Screw, Retainer |
