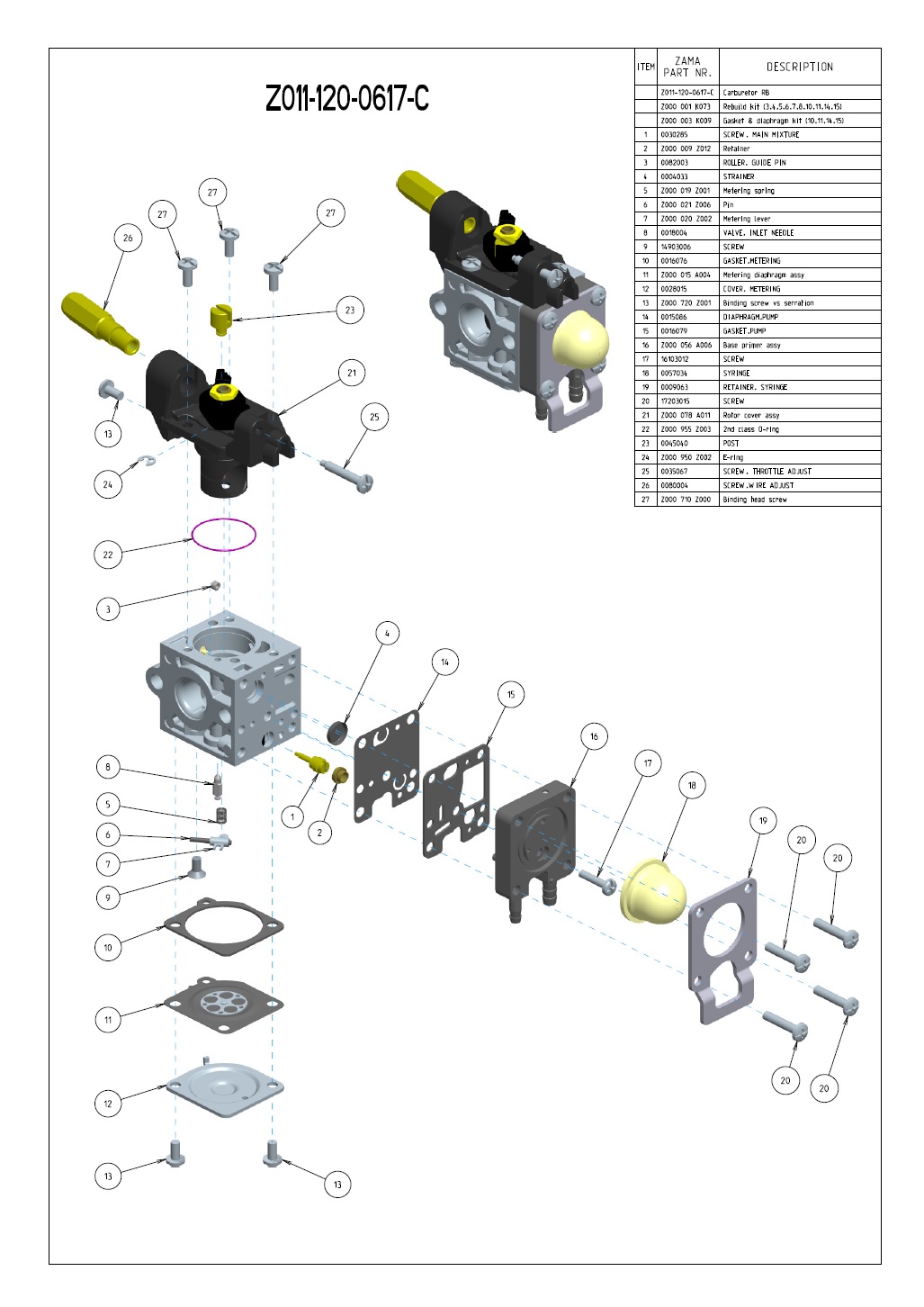

Z011-120-0617-C
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 10.5 mm | |||
 |
REBUILD KIT | ||
 |
GASKET & DIAPHRAGM KIT | |
|
| 1 | Screw, Main Mixture | ||
| 2 | Retainer | ||
| 3 | Roller, Guide | |
|
| 4 | Strainer | |
|
| 5 | Metering spring | |
|
| 6 | Pin | |
|
| 7 | Metering lever | |
|
| 8 | Valve, Inlet Needle | |
|
| 9 | Screw (Pin) | ||
| 10 | Gasket, Metering Chamber | |
|
| 11 | Metering diaphragm assy | |
|
| 12 | Cover, Metering Chamber | ||
| 13 | Binding screw vs serration | ||
| 14 | Diaphragm, Pump | |
|
| 15 | Gasket, Pump | |
|
| 16 | Base primer assy | ||
| 17 | Screw (Base Ass'y, Primer) | ||
| 18 | Syringe | ||
| 19 | Retainer, Syringe | ||
| 20 | Screw, Retainer | ||
| 21 | Rotor cover assy | ||
| 22 | 2nd class O-ring | ||
| 23 | Post | ||
| 24 | E-ring | ||
| 25 | Screw, Throttle Adjust | ||
| 26 | Screw, Wire Adjust | ||
| 27 | Binding head screw |
