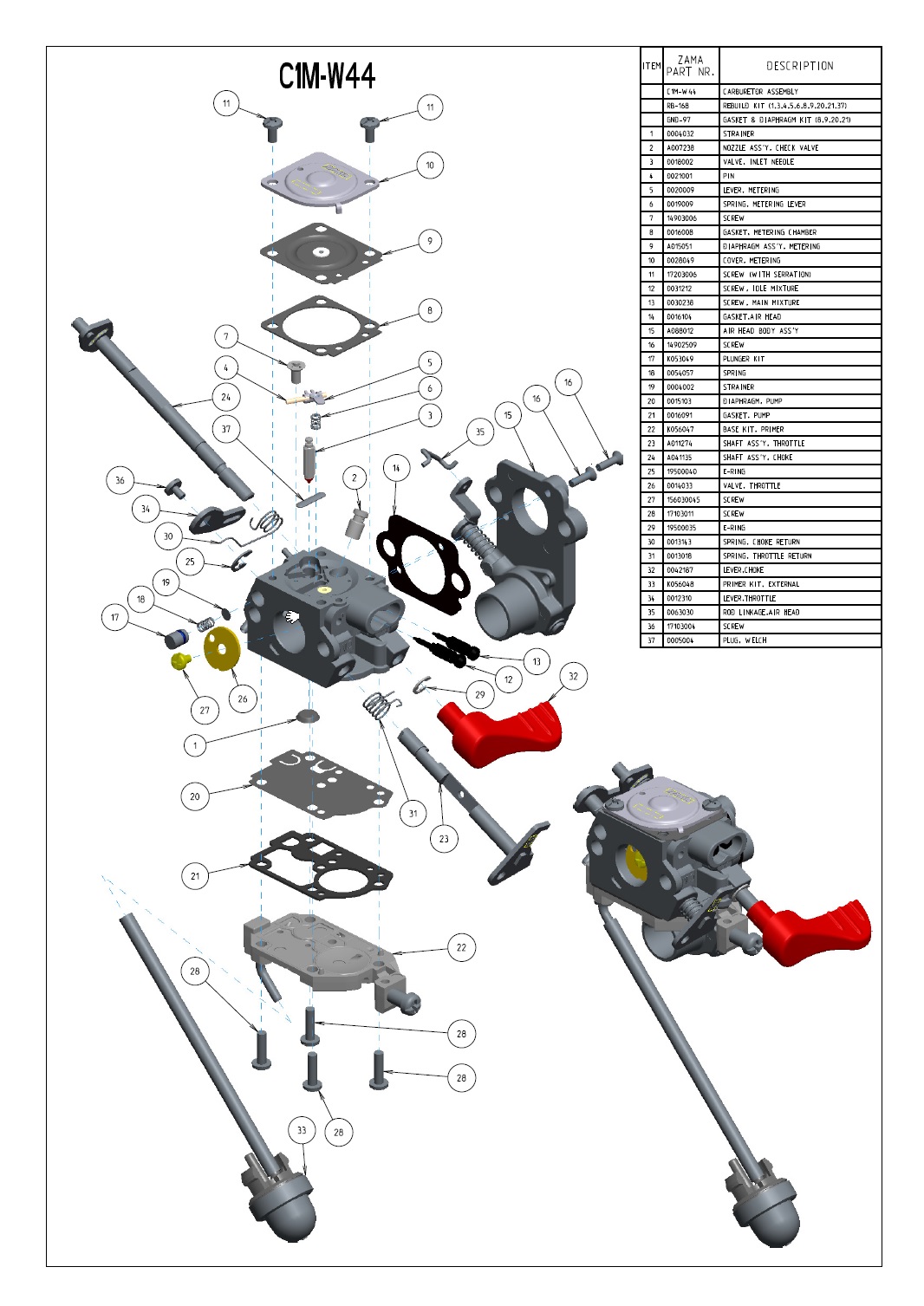

C1M-W44
| Ref | Part Name | Model Part | |
|---|---|---|---|
| 8 mm | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 1 | Strainer | |
|
| 2 | Nozzle Ass'y, Check Valve | ||
| 3 | Valve, Inlet Needle | |
|
| 4 | Pin | |
|
| 5 | Lever, Metering | |
|
| 6 | Spring, Metering Lever | |
|
| 7 | Screw (Pin) | ||
| 8 | Gasket, Metering Chamber | |
|
| 9 | Diaphragm Ass'y, Metering | |
|
| 10 | Cover, Metering Chamber | ||
| 11 | Screw (Metering Cover) | ||
| 12 | Screw, Idle Mixture | ||
| 13 | Screw, Main Mixture | ||
| 14 | Gasket Airhead | ||
| 15 | Airhead Body Ass'y | ||
| 16 | Screw | ||
| 16 | Base Kit, Primer | ||
| 17 | Plunger Kit | ||
| 18 | Spring (Plunger Return) | ||
| 19 | Strainer | ||
| 20 | Diaphragm, Pump | |
|
| 21 | Gasket, Pump | |
|
| 23 | Shaft Ass'y, Throttle | ||
| 24 | Shaft Ass'y, Choke | ||
| 25 | E-Ring | ||
| 26 | Valve, Throttle | ||
| 27 | Screw (Throttle Valve) | ||
| 28 | Screw (Pump Cover) | ||
| 29 | E-Ring (Choke Shaft) | ||
| 30 | Spring, Choke | ||
| 31 | Spring, Throttle Return | ||
| 32 | Lever, Choke | ||
| 33 | Primer Kit, External | ||
| 34 | Lever, Throttle | ||
| 35 | Rod Linkage, Air Head | ||
| 36 | Screw (Throttle Lever) | ||
| 37 | Plug, Welch | |
