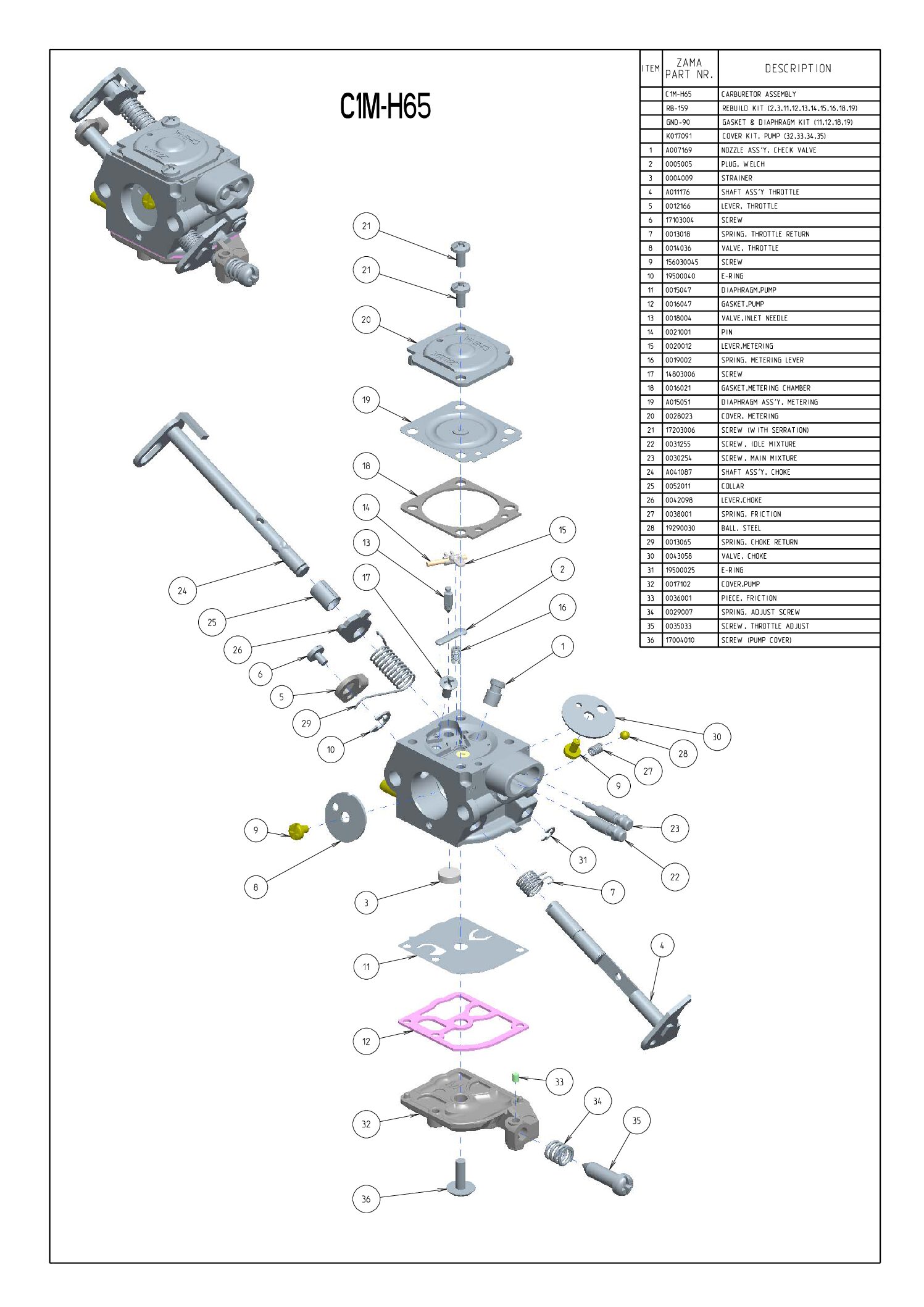

C1M-H65
| Ref | Part Name | Model Part | |
|---|---|---|---|
| Venturi | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
 |
Cover Kit, Pump | ||
| 1 | Strainer | |
|
| 2 | Nozzle Ass'y, Check Valve | ||
| 4 | Plug, Welch | |
|
| 7 | Shaft Ass'y, Throttle | ||
| 8 | Lever, Throttle | ||
| 9 | Spring, Throttle Return | ||
| 12 | Diaphragm, Pump | |
|
| 13 | Valve, Throttle | ||
| 14 | Cover, Pump | |
|
| 17 | Gasket, Metering Chamber | |
|
| 18 | Gasket, Pump | |
|
| 19 | Diaphragm Ass'y, Metering | |
|
| 20 | Valve, Inlet Needle | |
|
| 21 | Spring, Metering Lever | |
|
| 22 | Lever, Metering | |
|
| 22 | Screw, Idle Mixture | ||
| 23 | Pin | |
|
| 23 | Screw, Main Mixture | ||
| 24 | Cover, Metering Chamber | ||
| 26 | Spring, Adjust Screw | |
|
| 29 | Screw, Throttle Adjust | |
|
| 29 | Shaft Ass'y, Choke | ||
| 30 | Piece, Friction | |
|
| 31 | E-Ring | ||
| 31 | Spring, Friction | ||
| 33 | Valve, Choke | ||
| 40 | Screw (Pin) | ||
| 41 | Screw (Throttle Valve) | ||
| 44 | Screw (Metering Cover) | ||
| 45 | Screw (Pump Cover) | ||
| 46 | Screw (Throttle Lever) | ||
| 47 | Ball, Steel | ||
| 52 | E-Ring (Choke Shaft) | ||
| 54 | Spring, Choke | ||
| 56 | Lever, Choke | ||
| 57 | Collar, Choke Shaft |
